AgentQL REST API reference

AgentQL's REST API allows you to query web pages and documents like PDFs and image files to retrieve the results through HTTP requests from any language.

• Query data
• Create remote browser session
• Query document

Query data

Queries structured data as JSON from a web page given a URL using either an AgentQL query.

curl -X POST https://api.agentql.com/v1/query-data \
  -H "X-API-Key: $AGENTQL_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "query": "{ products[] { product_name product_price(integer) } }",
    "url": "https://scrapeme.live/?s=fish&post_type=product",
    "params": {
      "wait_for": 0,
      "is_scroll_to_bottom_enabled": false,
      "mode": "fast",
      "is_screenshot_enabled": false
    }
  }'

{
  "data": {
    "products": [
      {
        "product_name": "Qwilfish",
        "price": 77
      },
      {
        "product_name": "Huntail",
        "price": 52
      },
      ...
    ]
  },
  "metadata": {
    "request_id": "ecab9d2c-0212-4b70-a5bc-0c821fb30ae3"
  }
}

Authentication

All requests to the AgentQL API must include an X-API-Key header with your API key. You can generate an API key through Dev Portal.

Request body for web queries

• query string (alternative to prompt)

  The AgentQL query to execute. Learn more about how to write an AgentQL query in the docs. Note: You must define either a query or a prompt to use AgentQL.

• prompt string (alternative to query)

  A Natural Language description of the data to query the page for. AgentQL infers the data structure from your prompt. Note: You must define either a query or a prompt to use AgentQL.

• url string (alternative to html)

  The URL of the public web page you want to query. Note: You must define either a url or html to use AgentQL.

• html string (alternative to url)

  The raw HTML to query data from. Useful if you have a private or locally generated copy of a web page. Note: You must define either a url or html to use AgentQL.

• params object (optional)

  • wait_for number

    The number of seconds to wait for the page to load before querying. Defaults to 0.

  • is_scroll_to_bottom_enabled boolean

    Whether to scroll to bottom of the page before querying. Defaults to false.

  • mode str

    standard uses deep data analysis, while fast trades some depth of analysis for speed and is adequate for most usecases. Learn more about the modes in this guide. Defaults to fast.

  • is_screenshot_enabled boolean

    Whether to take a screenshot before extracting data. Returned in metadata as a Base64 string. Defaults to false.

Response for web queries

• data object

  Data that matches the query.

• metadata object

  • request_id string

    A Universally Unique Identifier (UUID) for the request.

  • screenshot string | null

    Base64 encoded screenshot if enabled, null otherwise. You can convert the Base64 string returned in the screenshot field to an image and view it using free online tools like Base64.guru.

Create remote browser session

Create a remote browser session that provides a Chrome DevTools Protocol (CDP) URL for connecting to a remote browser instance. This allows you to run browser automation on remote infrastructure.

curl -X POST https://api.agentql.com/v1/tetra/sessions \
  -H "X-API-Key: $AGENTQL_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "browser_ua_preset": "windows"
  }'

{
  "session_id": "ca7947a1-a188-4391-be82-fb968ce4df4a",
  "cdp_url": "wss://ca7947a1-a188-4391-be82-fb968ce4df4a.tetra.agentql.com",
  "base_url": "https://ca7947a1-a188-4391-be82-fb968ce4df4a.tetra.agentql.com"
}

Authentication

All requests to the AgentQL API must include an X-API-Key header with your API key. You can generate an API key through Dev Portal.

Request body for browser sessions

• browser_ua_preset string (optional)

  User agent preset to simulate different operating systems. Supported values: windows, macos, linux.

Response for browser sessions

• cdp_url string

  Chrome DevTools Protocol URL for connecting to the remote browser using Playwright or similar automation tools. That's what you need to connect to the remote browser using connect_over_cdp method.

• base_url string

  Base URL for accessing browser session resources and streaming endpoints.

• session_id string

  Unique identifier for the browser session.

Use the remote browser session

Once you have created a browser session, you can connect to it using Playwright:

from playwright.async_api import async_playwright

async def use_remote_browser():
    # Get session from previous API call
    cdp_url = session_data['cdp_url']

    async with async_playwright() as p:
        browser = await p.chromium.connect_over_cdp(cdp_url)

        # Use browser normally
        page = await browser.new_page()
        await page.goto('https://example.com')

        # View the page in real-time (optional)
        streaming_url = f"{session_data['base_url']}/stream/0"
        print(f"View at: {streaming_url}")

Query document

Extract data from a document by sending a PDF or image (JPEG, JPG, PNG) file and an AgentQL query. Learn about the consumption logic for querying documents here

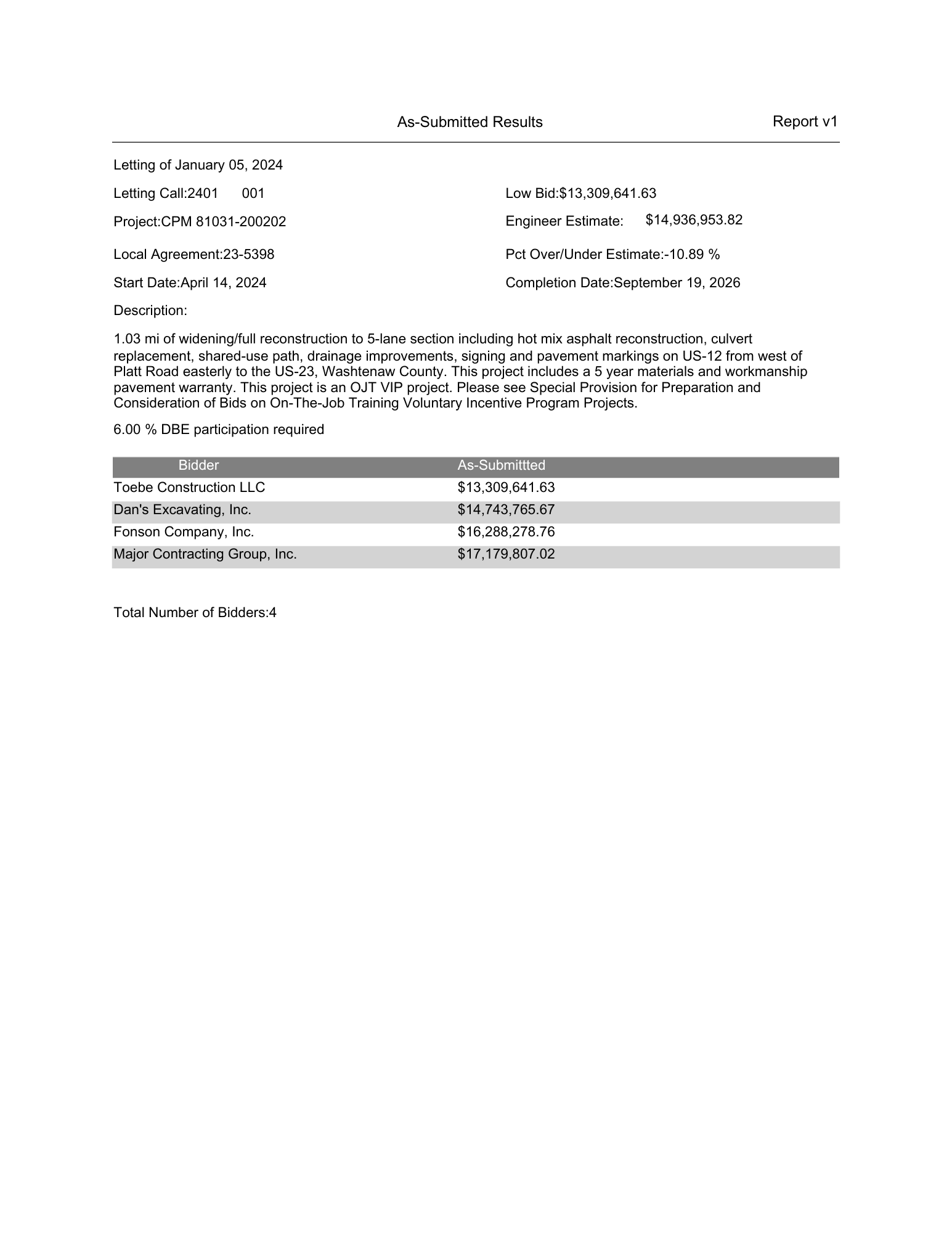

for this example, use the following example file

curl -X POST https://api.agentql.com/v1/query-document \
  -H "X-API-Key: $AGENTQL_API_KEY" \
  -H "Content-Type: multipart/form-data" \
  -F "file=@/path/to/file.pdf" \
  -F 'body="{\"query\": \"{ project { id lowest_bidder lowest_bid } } \", \"params\": { \"mode\": \"fast\" }  }" '

{
  "data": {
    "project": {
      "id": "CPM 81031-200202",
      "lowest_bidder": "Toebe Construction LLC",
      "lowest_bid": 13309641.63
    }
  },
  "metadata": {
    "request_id": "ecab9d2c-0212-4b70-a5bc-0c821fb30ae3"
  }
}

Authentication

All requests to the AgentQL API must include an X-API-Key header with your API key. You can generate an API key through Dev Portal.

Request body for document queries

The request body for querying documents is a multipart/form-data object that contains a file and a body.

• file string

  File Path of file to execute query on.

• body string

  The body is a stringified JSON that represents parameters for the query because multipart/form-data only takes string.

  1. query string (alternative to prompt):

  The AgentQL query to execute. Learn more about how to write an AgentQL query in the docs. Note: You must define either a query or a prompt to use AgentQL.

  2. prompt string (alternative to query):

  A Natural Language description of the data to query the page for. AgentQL infers the data structure from your prompt. Note: You must define either a query or a prompt to use AgentQL.

  3. params object (optional):

  representation of the parameters for the query.

  • mode str: Specifies the extraction mode: standard for complex or high-volume data, or fast for typical use cases. Defaults to fast.

Response for document queries

• data object

  Data that matches the query

• metadata object

  • request_id string

    A UUID for the request
